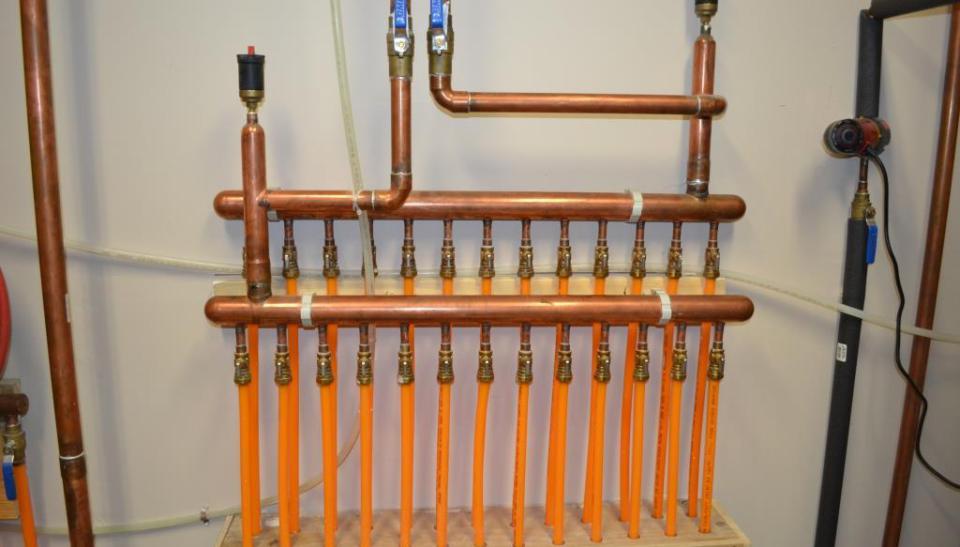

We will custom manufacture headers to your specifications!
Just give us your specifications and Alberta Custom Tee will create a unique product. Choose multiple outlets from 1/2" up to 6" in diameter assembled on a pipe
run of 1" to 8" copper tubing.
Closed (Ends and/or Caps)
½”, ¾”, 1", 1¼”, 1½”, 2", 2½”, 3", 4", and 6"
Pipe Runs
1", 1¼”, 1½”, 2", 2½”, 3", 4", and 6" (available in Type L or K)
Extruded Sizes
½”, ¾”, 1", 1¼”, 1½”, 2", 2½”, 3", 4", and 6"
Reductions and expansions offered in various sizes.
Various fittings can be soldered/brazed to outlets and or ends.

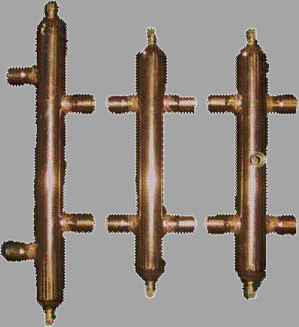

Low Loss Headers
Female Sweat Copper inlets/outlets with ½” FIP’s Top and Bottom.
Three versions now offered – see picture (2”x1” shown)
Offset sweat outlets, Standard, Optional extra ½” FIP outlet designed for sensor well or temperature gauge 2” Body with 1”, 1¼”or 1½” inlets/ outlets;
2½” Body with 1”, 1¼”, 1½” or 2” inlets/ outlets; 3” Body with 1”, 1¼”, 1½”, 2” or 2½” inlets/ outlets; 4” Body with 1”, 1¼”, 1½”, 2” or 3” inlets/ outlets; 6” Body with 2”, 2½”, 3”, or 4” inlets/
outlets.
Need something not shown? Please contact your Sales Representative, Wholesale supplier or ACPP Custom Plumbing Parts ULC to find out if possible/
pricing
